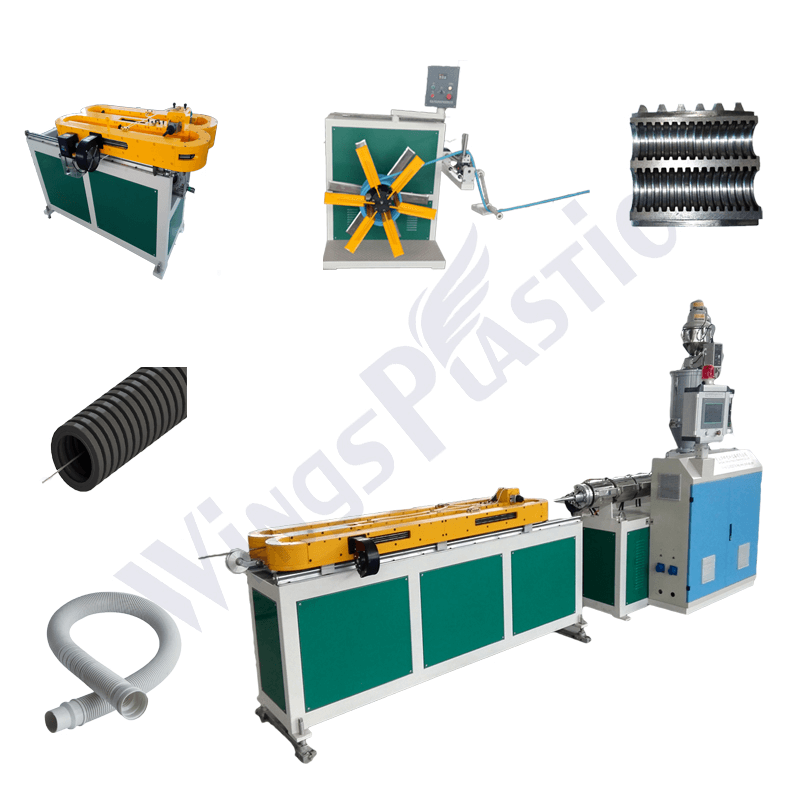

Good Quality Corrugated Plastic Pipe Machine, Single Wall Corrugated Pipe Extrusion Line
Qingdao Wings Plastic Technology Co.,Ltd is one of the most proffesional corrugated pipe extrusion line manufacturer in China market. We focus on corrugated pipe machinery business and production over 10 year. high quality and automatic system is highly praised by customers.
We have customers in USA, India, Egypt, Middle East counrties etc.
We produce different type of corrugated plastic pipe machine with different speed and diameters.
Machinery introduction:
Extruder is high speed high efficiency type, our 45/33 extruder could meet 80kg/h capacity.
Die is Modulating forging materials, easy for operation and high precision.
We adopt Gear driven and truck block working technology for corrugated forming machine. We have many types of forming machine to meet different capacity request and price.
The Coiler adopt automatic ranking system by inverter control.
Pipe Production Basic Informations:
Name | Pipe diameters (OD) | Screw Diameter | Main Motor | Extruder Capacity | Moulds Quanity | Forming Speed |
WS35/52 | 7-10mm | 35mm | 5.5kw | 15kg/h | 52 pairs | 8-12m/min |
WS45/44 | 12-40mm | 45mm | 15kw | 40-60kg/h | 44 pairs | 10-15m/min |
WS45/50 | 12-52mm | 45mm | 15kw | 40-60kg/h | 50 pairs | 8-15m/min |
WS55/72 | 12-52mm | 55mm | 18.5kw | 60-70kg/h | 72 pairs | 15-25m/min |
WS65/60 | 12-56mm | 65mm | 22kw | 60-80kg/h | 60 pairs | 18-25m/min |
WS65/110 | 40-110mm | 65mm | 30kw | 80-120kg/h | 60 pairs | 10-15m/min |
