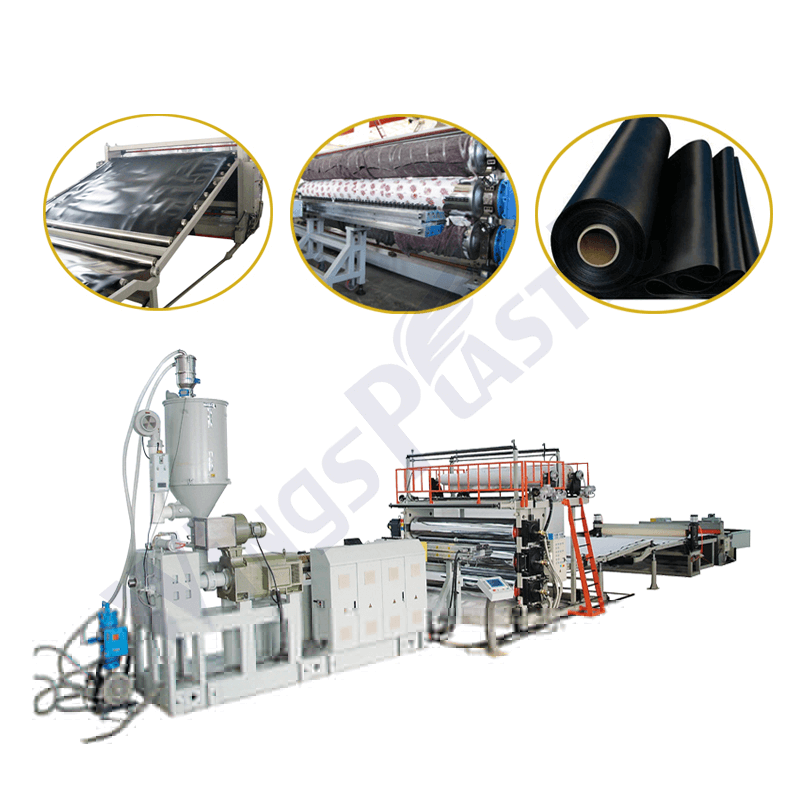

HDPE GEOMembrane Sheet Extrusion Line
As a new material, HDPE geomembrane has excellent anti-seepage, anti-corrosion and good chemical stability, and can be processed according to the actual engineering needs, It has been widely used for seepage prevention of dykes, dams and reservoirs in water conservancy projects, and also used as anti-seepage, anti-corrosion, leak proof and moisture-proof materials in channels, reservoirs, sewage pools, swimming pools, housing construction, underground buildings, garbage dump, environmental engineering, etc. The technology has been widely used in developed countries since 1930s, and HDPE geomembrane has been widely used in various projects in China since 1980s.
Production Flow:
Automatic feeding unit--Extruder melt--Filter--T-Die--Three roller calender unit--Cooling frame--Hual off and trimmer --Accumulator--Pulling--Winder
Basic Machinery Informations:
Sheet Width | Sheet Thickness | Main Extruder | Main Motor | Capacity |
2000mm | 0.2-1mm | 120/30 | 110kw | 400kg/h |
3000mm | 0.2-1mm | 120/33 | 132kw | 500kg/h |
4000mm | 0.2-1mm | 150/30 | 160kw | 650kg/h |
5000mm | 0.2-1mm | 120/33-H | 200kw | 750kg/h |
6000mm | 0.2-1mm | 120/33-H | 250kw | 900kg/h |
7000mm | 0.2-1mm | 150/33-H | 315kw | 1000kg/h |
8000mm | 0.2-1mm | 150/33-H | 400kw | 1300kg/h |
