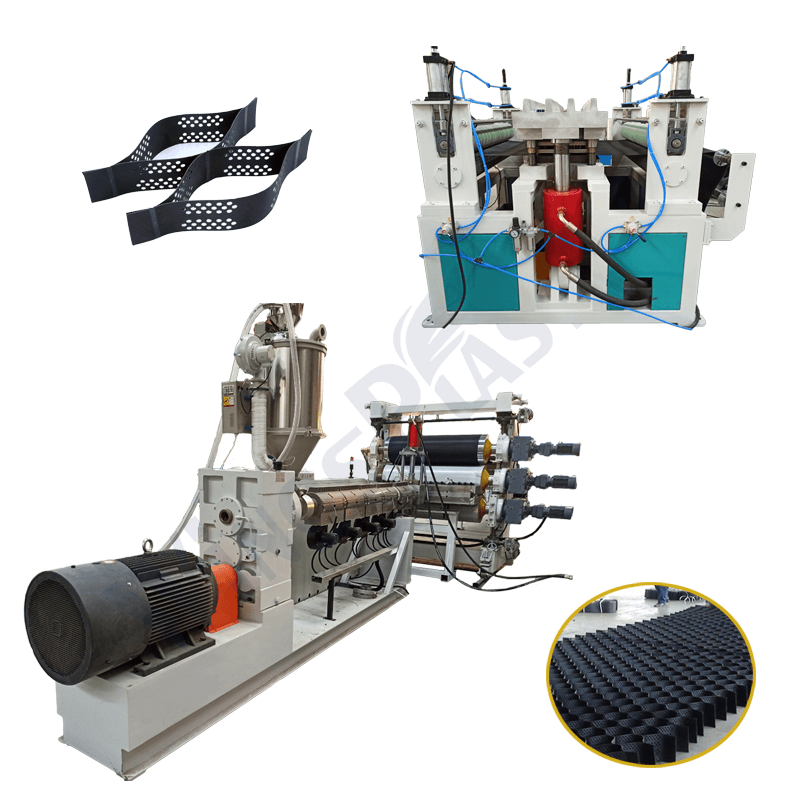

PE PP Geocell Plastic Sheet Product Line / Plastic Machine Geocell Extruder Machine
Geocell Production Line is used to produce plastic geocell, which is a kind of geo-product with alveolate and three-dimensional structure which processed the thermoplastic sheet by the ultrasonic welding machine and other methods.
Its special three-dimensional structure makes it possible to form the different viscous force, different reinforcing bar intensity and different thickness of cushion. It is widely used in the fields of the reinforcing of railway, strengthening roadbed, protect of field bank, building of earth protection wall, and so on.
Production Flow:
Materials feeding--Extruder Melt--Filter--Extrusion T-Die--Three calender--Cooling frame and trimming--Puller--Punching Unit--Puller--Cutting--Stacking Frame.
Basic Machinery Informations:
Sheet Width | Sheet Thickness | Main Extruder | Main Motor | Capacity |
600-800mm | 0.2-2mm | 75/33 | 55kw | 200kg/h |
1000-1200mm | 0.2-2mm | 90/33 | 90kw | 350kg/h |
