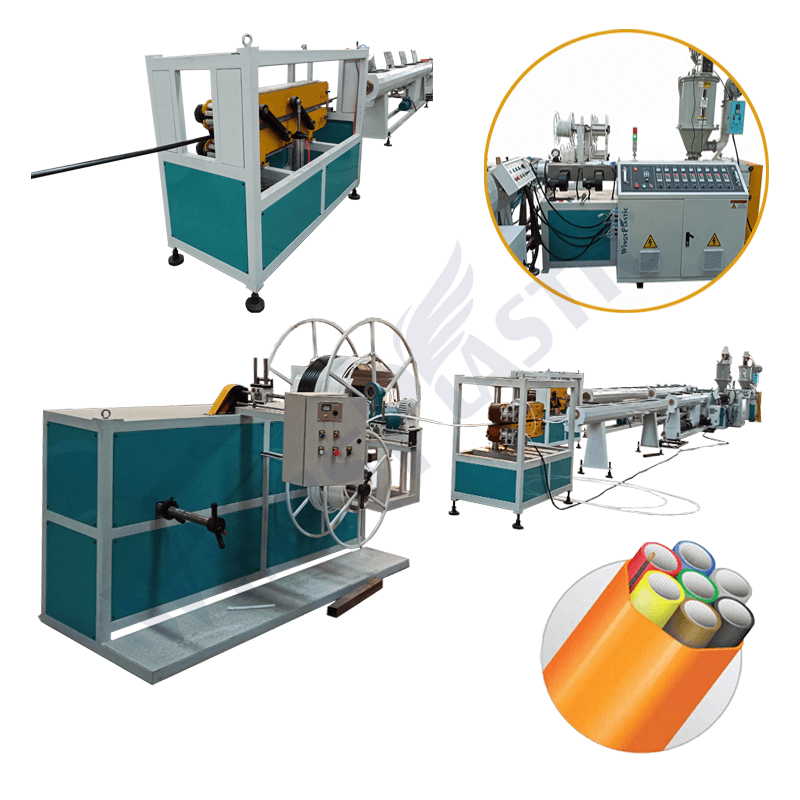

PE Bundle Microduct Communication Pipe Extrusion Line

Availability:
Quantity:


PE Bundle Microduct Communication Pipe Extrusion Line


HDPE Communication pipe machine have two system, one is HDPE microduct tube extrusion line, one is HDPE communication bundle pipe extrusion line. And the bundle pipe could be spiral corrugated pipe (COD pipe) or polygon pipe system.



Machinery equipment List:

1. Core pipe system include: Automatic feeder, SJ65/33 Extruder. SJ25/25 Markline extruder, Core pipe die, Vacuum tank, water tank, haul-off machine, coiler


2. Bundle Pipe system include: Uncoiler for core pipe, guiding device, coating die, 65/33 Extruder, Vacuum tank, haul off machine, coiler


Machinery Basic Informations:

Pipe Range

Extruder Model

Main Motor

Output

Speed

Core Pipe 6-20mm

SJ55/33

22kw

80kg/h

1-20m/min

Core Pipe

10-32mm

SJ55/33

30kw

120kg/h

1-30m/min

Bundle Pipe

SJ70/32

30kw

120kg/h

0.5-6m/min





Qingdao Wings Plastic Technology Co.,Ltd
was incorporated in 2008 for the manufacture of extrusion lines for production of corrugated pipe, plastic mat,pipe/hose, PET/PP filament, PET PP strap, WPC profile, plastic sheet/board etc.
