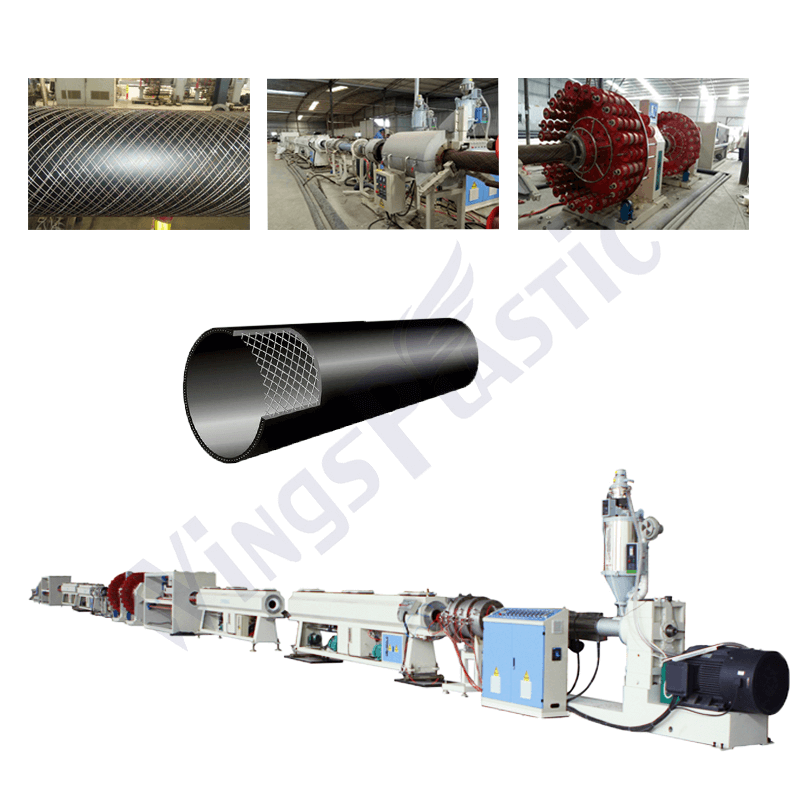

Steel Wire Braiding Reinforced Skeleton HDPE Composite Pipe Making Machine
Steel wire mesh skeleton pipe is an industry abbreviation of steel wire mesh skeleton plastic composite pipe. It is an improved new steel skeleton plastic composite pipe. This kind of pipe is made of cross woven high-strength steel wire after plastic, which is used as the skeleton and fused with thermoplastic polyethylene. The steel wire winding mesh is used as the skeleton reinforcement of polyethylene plastic pipe, high-density polyethylene (HDPE) is used as the core pipe matrix, and high-performance HDPE modified adhesive resin is used to closely connect the steel wire skeleton with the inner and outer high-density polyethylene, So that it has excellent composite effect. Because the high-strength steel wire reinforcement is coated in continuous thermoplastic, this composite pipe overcomes the respective disadvantages of steel pipe and plastic pipe, and maintains the respective advantages of steel pipe and plastic pipe.
The advanced production technology of steel wire mesh skeleton pipe has higher pressure resistance and excellent flexibility. It is suitable for long-distance buried water supply and gas transmission pipeline systems, and common water transmission pipes for fire engineering, municipal engineering and rural high-pressure tap water.
The steel wire mesh skeleton pipe adopts polyethylene electrofusion pipe fittings. When connecting, the heating body inside the pipe fitting is used to melt the outer plastic of the pipe and the inner plastic of the pipe fitting, so as to reliably connect the pipe and the pipe fitting together.
Advantages of Steel Wire Skeleton PE pipe Pipe Line:
Steel wire, fiber glass can be used as the reinforcing materials which are in the middle layer of the pipe.
30% material cost lower than normal PE Pipe production line.
Multi-purpose of producing PE water and gas pipe.
Pipe's presure endurance can reach 3MPa.
Human-computer interface with Siemens PLC system.
Basic Informations of the Steel Reinforced Pipe Extrusion Lines
Model | Pipe Range(mm) | Hauling speed(m/h) | Capacity(km/year) | Nominal Power(kW) | Actual Power Consumption(kW) |
PE-110 | Ø50-110 | 54 on Ø50mm | >220 | 400 | 210 |
PE-250 | Ø75-250 | 54 on Ø75mm | >220 | 480 | 250 |
PE-630 | Ø315-630 | 30 on Ø315mm | >120 | 850 | 450 |
PE-800 | Ø560-800 | 12 on Ø630mm | >80 | 1100 | 550 |
PE-1000 | Ø710-1000 | 10.8 on Ø710mm | >60 | 1200 | 700 |
