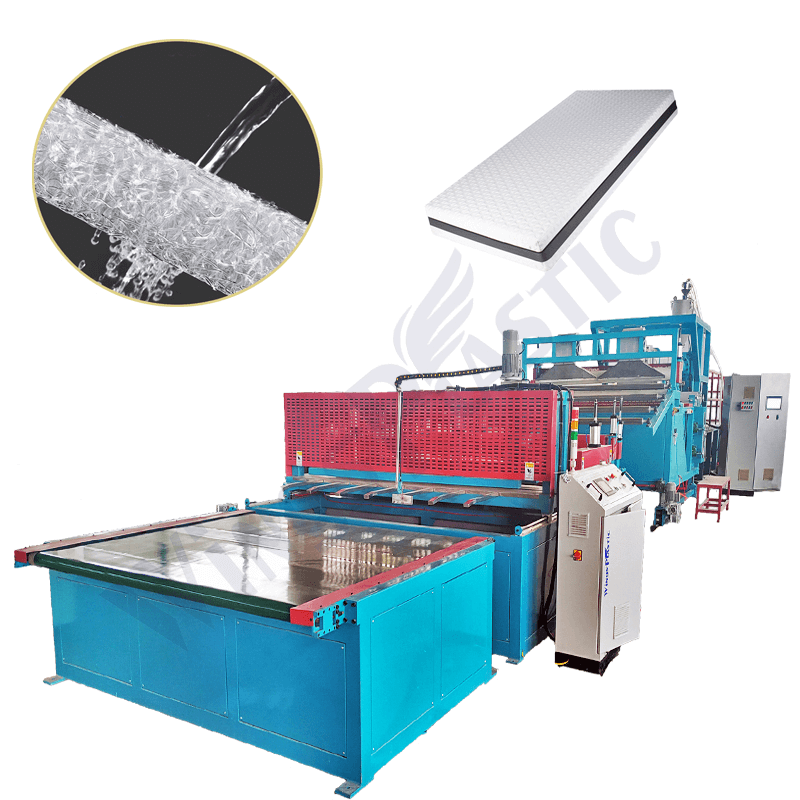

POE EVA 3D Polymer Air Weave Coil Mattress Extruder Machine, Mattress Core Materials Production Line Extrusion Line
Coil mattress designed by ergonomic theory is made of green polymer material EVA. The polymer thread forms 3D network structure through its fusion, and adopts no-connection-point tangling and a net-type support. It can form strong, durable surface and internal network structure with full flexibility, fully conforming to the body curve. It brings natural, comfortable and healthy quality sleep and top-grade seating comfort for you.
Product advantages
High air permeability, refreshing.
It is easy for disinfection, and dries quickly.
It adopts high-grade green material, self-cleaning and healthy.
Pad surface is unsinkable, durable and affordable.
Quiet design, environmentally-friendly, saving energy, high price/performance ratio.
Product applications
Coil mattress is widely used as various kinds of products that need permeability, cleaning, environmental protection and durability because of its special advantages and high quality, such as: hospital care mattress, home mattress, dormitory mattress, high speed rail seat, wheelchair cushion, baby pad, outdoor mat, pet pad, etc.
Bed mattress is widely used on various kinds of products that need permeability, cleaning, and durability because of its special advantages and high quality.
Such as: hospital care mattress, home mattress, dormitory mattress, high speed rail seats, wheelchair cushion, baby pad, outdoor mat, pet pad, etc.
Production Flow:
Materials feeding --Extruder melt -- Filter -- Extrusion die -- Water tank forming--Puller--Dewatering device-- Puller-- Cutting--Stacking and Packing
Basic Informations of Production Line:
Name | Mattress size (Width) | Main Motor | Screw Diameter | Screw L:D | Output | Screw Speed |
SJ75/30 | Pillow or 800mm | 55kw | 75mm | 30:1 | 150-200kg/h | 74RPM |
SJ90/30 | 800mm-1200mm | 90kw | 90mm | 30:1 | 280-350kg/h | 74RPM |
SJ120/30 | 2000-2200mm | 132kw | 120mm | 30:1 | 380-450kg/h | 74RPM |
