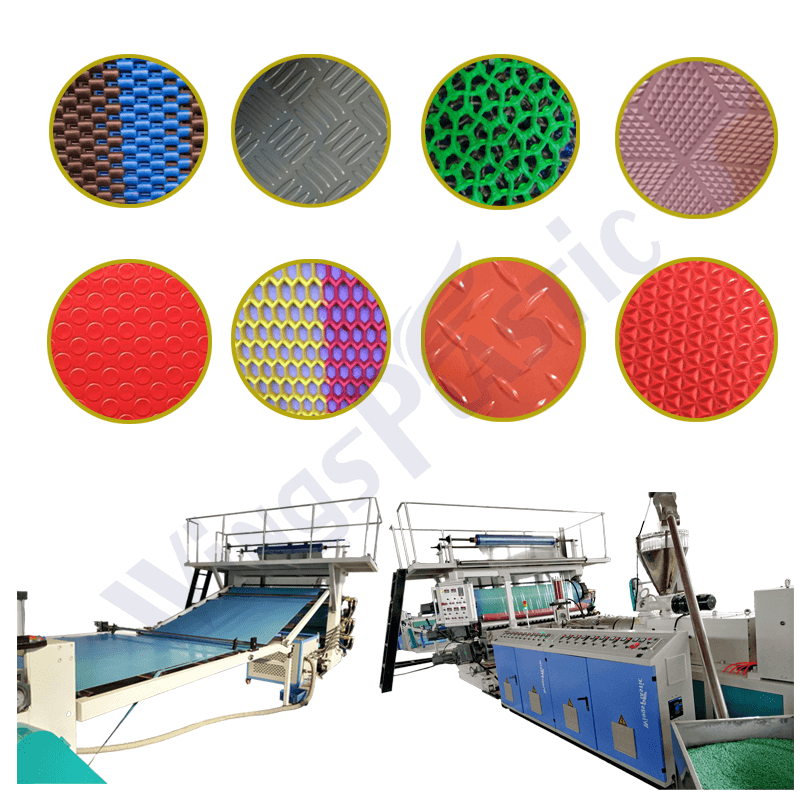

PVC Calender Anti-Slip Chain Coin Mat Extruder Machine
PVC floor mat is a kind of calendaring product with different back shapes. such like pane shape,tooth shape,strip shape,dot shape,diamond shape etc. The mat have the features of anti-skid, acid and alkali-resistant, anti-UV, high temperature-resistant, cold-resistant etc. The mat we tested is with good formula, make it very comfort, have a moderate softness. The machine also can compound with the carpet,non-woven fabrics,wich is mainly used in the door,car ,bath room,hotels, airports, restaurant, holiday resort and many other public places.
Production Flow:
Coint mat or similar single layer type:
Materials mixing--Automatic feeding into extruder--Extruder melt--Filter--Extrusion Die--Calender forming unit--Film lamination-Cooling frame-Trimming and pulling--Winding.
Chain mat or similar hollow mat type:
Materials mixing--Automatic feeding into extruder--Extruder melt--Filter--Extrusion Die--Calender forming unit--Cooling frame-Trimming and pulling--Hollow slitting--Winding.
PVC Floor Sheet Extruder Line With Calendaring system Specifications:
Name | Capacity | Main Motor | Mat Width | Suitable Mixer |
SJZ65/132 | 180-250kg/h | 37kw | 1200mm | 300L mixer |
SJZ80/156 | 300-400kg/h | 55kw | 1200-2000mm | 500L mixer |
SJZ92/188 | 600-800kg/h | 90-110kw | 2000mm | 500L mixer |
